Factory Direct Sale Two Post In Ground Car Lifts 2 Post Hydraulic Under Ground Lift 6ton

Product Categories

QINGDAO XUECHENG TRADE CO., LTD

Contact Now

Name: Factory Direct Sale Two Post In Ground Car Lifts 2 Post Hydraulic Under Ground Lift 6ton
Brand: XCAREPAIRKING
Price: 5500 USD

Brand Name : XCAREPAIRKING

Model Number : XT6000A

Certification : CE

Place of Origin : China

MOQ : 2 sets

Price : $5500- $7000

Payment Terms : Western Union, T/T, L/C, MoneyGram, Cash

Supply Ability : 50 sets per month

Delivery Time : 20-35 days

Packaging Details : Standard Export Package

Design : two post

Type : double Cylinder Hydraulic Lift

Material : alloy steel

Warranty : 1 year

Installation : under ground

Contact Now

2 Post In Ground Hydraulic Car Lift 1850mm/6000kg

Factory Direct Sale Two Post In Ground Car Lifts 2 Post Hydraulic Under Ground Lift 6ton

Features

The guiding barrel and piston of lifting cylinder use the high-quality alloy steel as the material with hard chromium coated, so it is quite durable.
The seal of cylinder is Parker, which is excellent in sealing property and long service life.
Pipeline explosion valve is equipped inside the cylinder, which can ensure the security when there are uncommon conditions on oil pressure pipeline.
The lifting columns of two post and multi post lifts are rigidly connected with synchronous beam(separated type), so it is excellent in synchronous performance and steady.
Guiding pipes screwed on the chromed traverse guarantee synchronized movement and avoid rotation of the run ways
Equipped with mechanical pneumatic locks, it can stop in any position automatically to ensure safety.
It is wisely used in check-in,repair&maintenance,body repair and car washing.

Technical Parameters

Lifting Capacity	6000KG
Load Sharing	max. 6:4 in or against drive-on direction
Max.Lifting Height	1850mm
Raising/Lowering time	40-60sec
Main Unit Length	2690mm
Main Unit width	415mm
Main Unit height	2514mm
N.W.	1760KG
The pressure of the air source	0.6-0.8Mpa
Output of oil pump	13.3Ml/round
Motor Speed	2850 rounds/min
Set pressure of the overflow valve	10MPa
Solenoid valve pressure	AC220 V /50 Hz
Power	2.2kw
Supply Votage	AC220/380V/50Hz; AC230/400V/50Hz
Sound level (measured at control console)	≤75 dBA

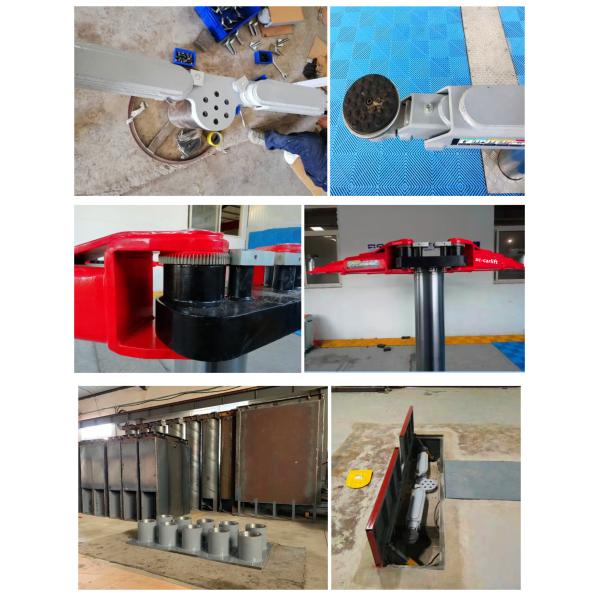

Detailed Pictures

Factory Direct Sale Two Post In Ground Car Lifts 2 Post Hydraulic Under Ground Lift 6ton

More Models for option

Factory Direct Sale Two Post In Ground Car Lifts 2 Post Hydraulic Under Ground Lift 6ton Images
